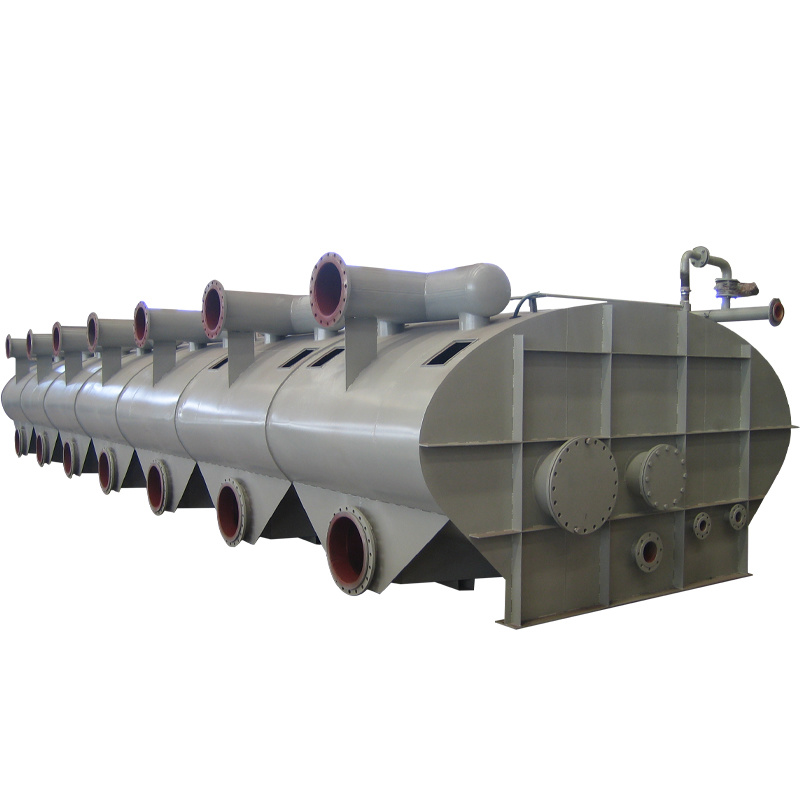

Elliptic-Cell Flotation Machine
Category:
WhatsApp:+86 18663829805
Product Details
Application
Use flotation principle to remove the dust and ink particles of the waste paper pulp in paper industry, in order to obtain high quality pulp.
Features
Self-absorption air, can produce different degree of turbulence, forming different sizes of tiny air bubbles, more conducive to adsorb ink and dust.
Wide range of ink separation, less fiber loss.
Each of the flotation tank common use one liquid level control circuit, the operation is simple and reliable.
Large flow rate, cover small area.
Layout form: horizontal or stacked up.
|
Type |
ZFE1 |
ZFE2 |
|
|
Specifications:mm |
3800 |
4300 |
|
|
Consistency of inflow pulp |
0.9-1.2% |
||
|
Pressure of inflow pulp:Mpa |
0.1 |
||
|
Operational pressure difference:Mpa |
0.09-0.10% |
||
|
Capacity:t/d |
1m |
65-85 |
\ |
|
2m |
130-170 |
\ |
|
|
3m |
195-255 |
\ |
|
|
4m |
160-340 |
320-400 |
|
|
5m |
\ |
400-500 |
|
