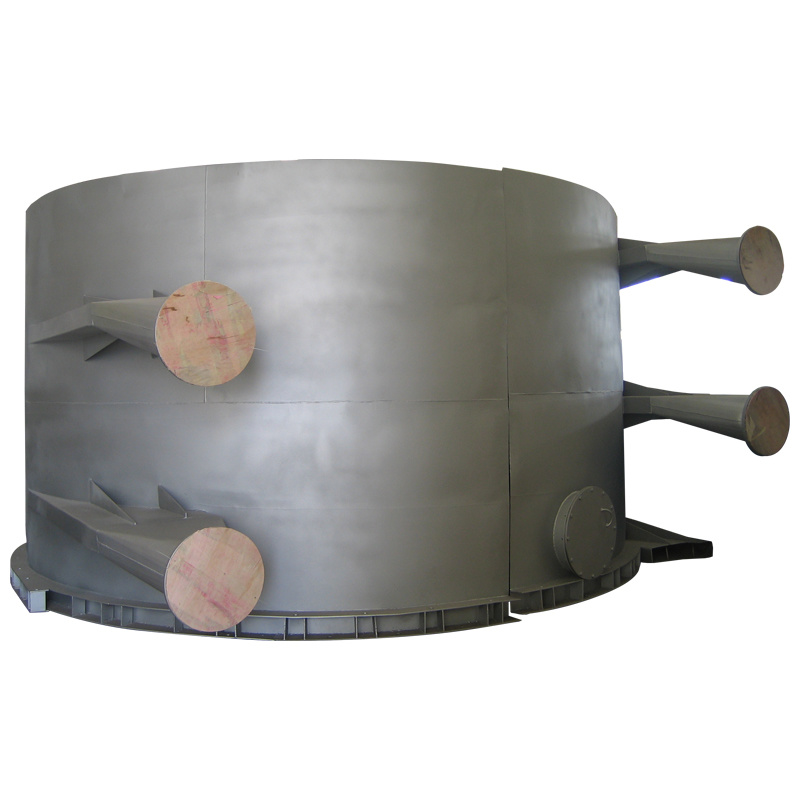

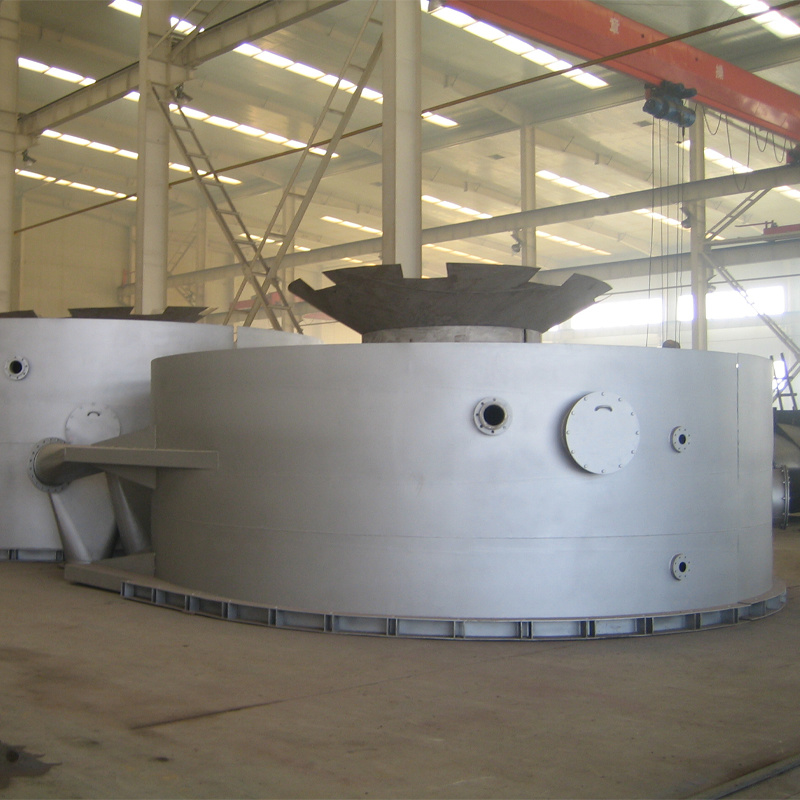

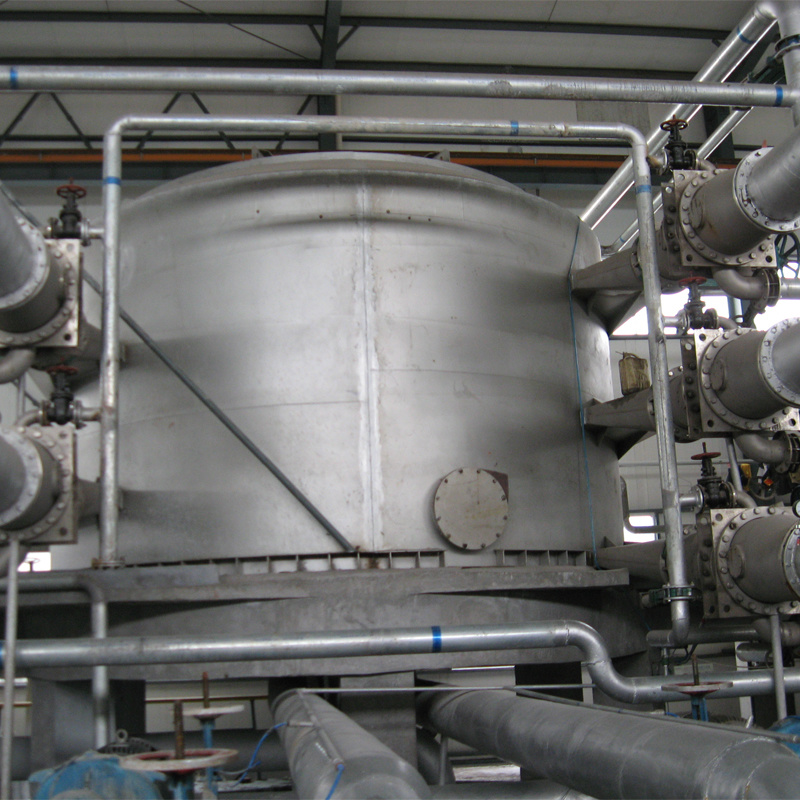

Mac-Cell Flotation Machine
Category:
WhatsApp:+86 18663829805
Product Details
Application
Used for removing ink particles in waste pulp.
Features
Optimized injector type can gain broad-spectrum air bubbles, which can efficiently remove ink particles and dirt within wider size range. Thereby, be able to gain good cleanliness of pulp, at the same time, part of stickies and filler in pulp can also be removed.
This equipment has the following merits: full-closed design; clear water dosage is not increased; good operation environment;
Only one piece can achieve 4~5 stages of floatation; take up smaller floor;
Injector has stronger self-cleaning ability, thereby injector is not easy to be plugged.
|
Type |
ZFM1 |
ZFM2 |
ZFM3 |
ZFM4 |
ZFM5 |
ZFM6 |
ZFM7 |
ZFM8 |
ZFM9 |
ZFM10 |
|
Flow rate:m3/h |
256 |
400 |
512 |
624 |
800 |
976 |
1152 |
1344 |
1456 |
1600 |
|
Layers |
4-5 |
|||||||||
|
Treating consistency |
1.1±01 |
|||||||||
|
Consistency of production:t/d |
55-65 |
85-100 |
110-130 |
130-160 |
170-210 |
210-250 |
240-300 |
290-350 |
310-380 |
340-420 |
|
Consistency of ink |
2-3 |
|||||||||
